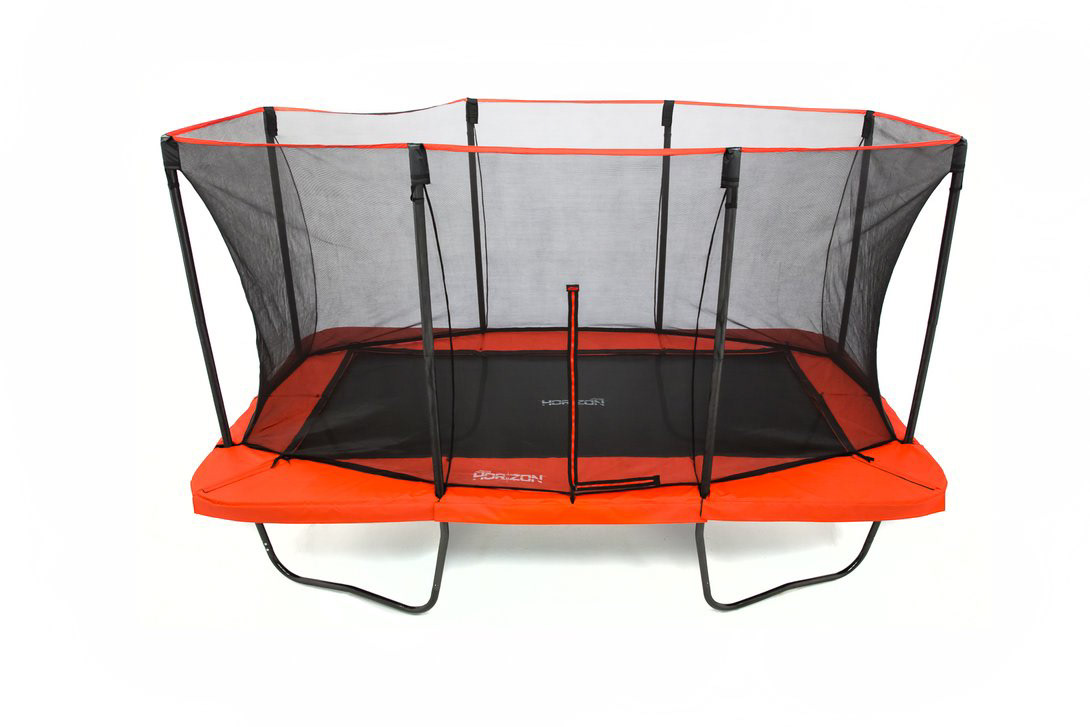

Backyard trampoline with full enclosure net system
Horizon - Designed and engineered as SkyBound's "Flagship" premium model
Super Duty 2.5 inch diameter double frame construction

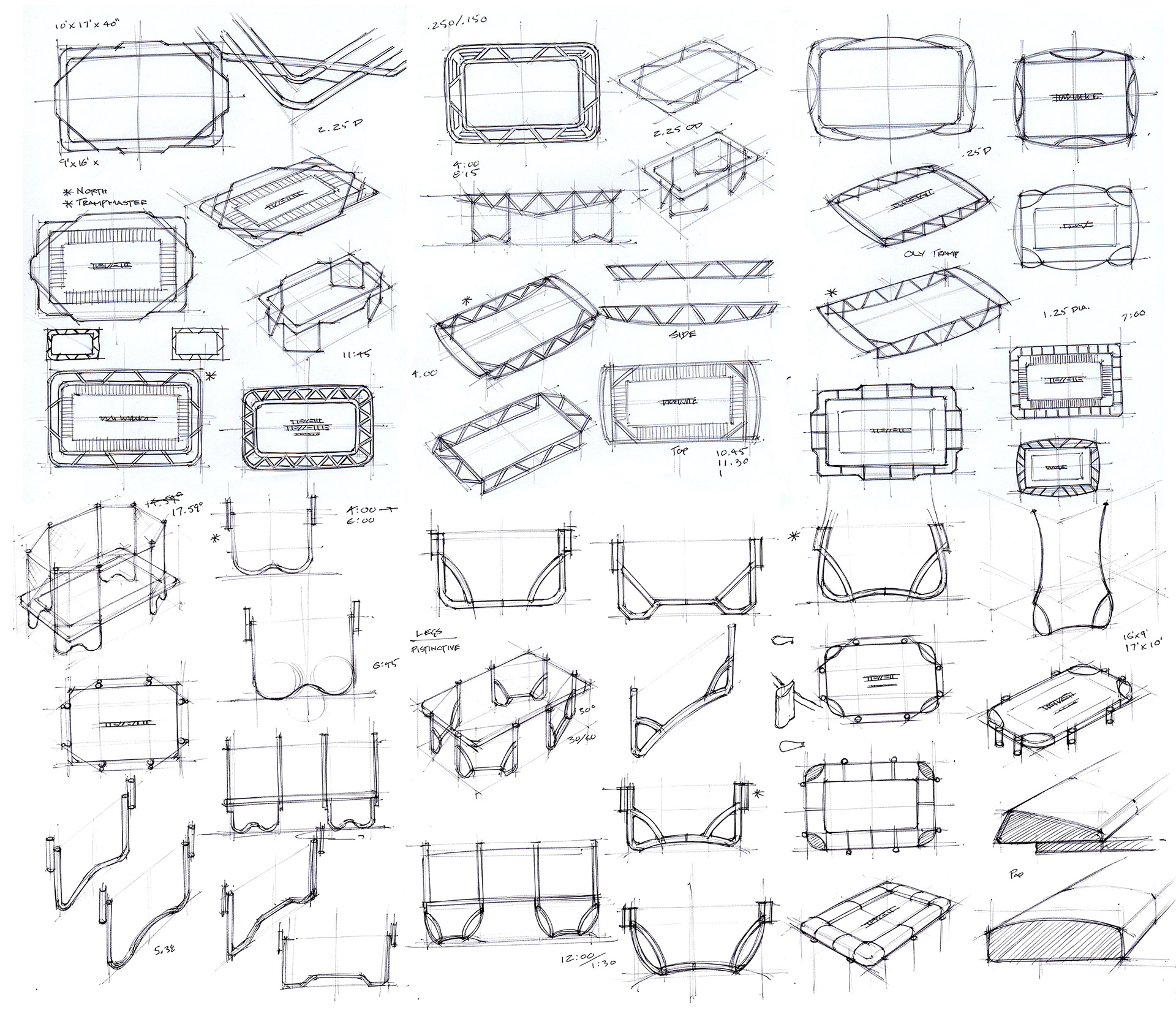

Thumbnail sketches
Ideation - details

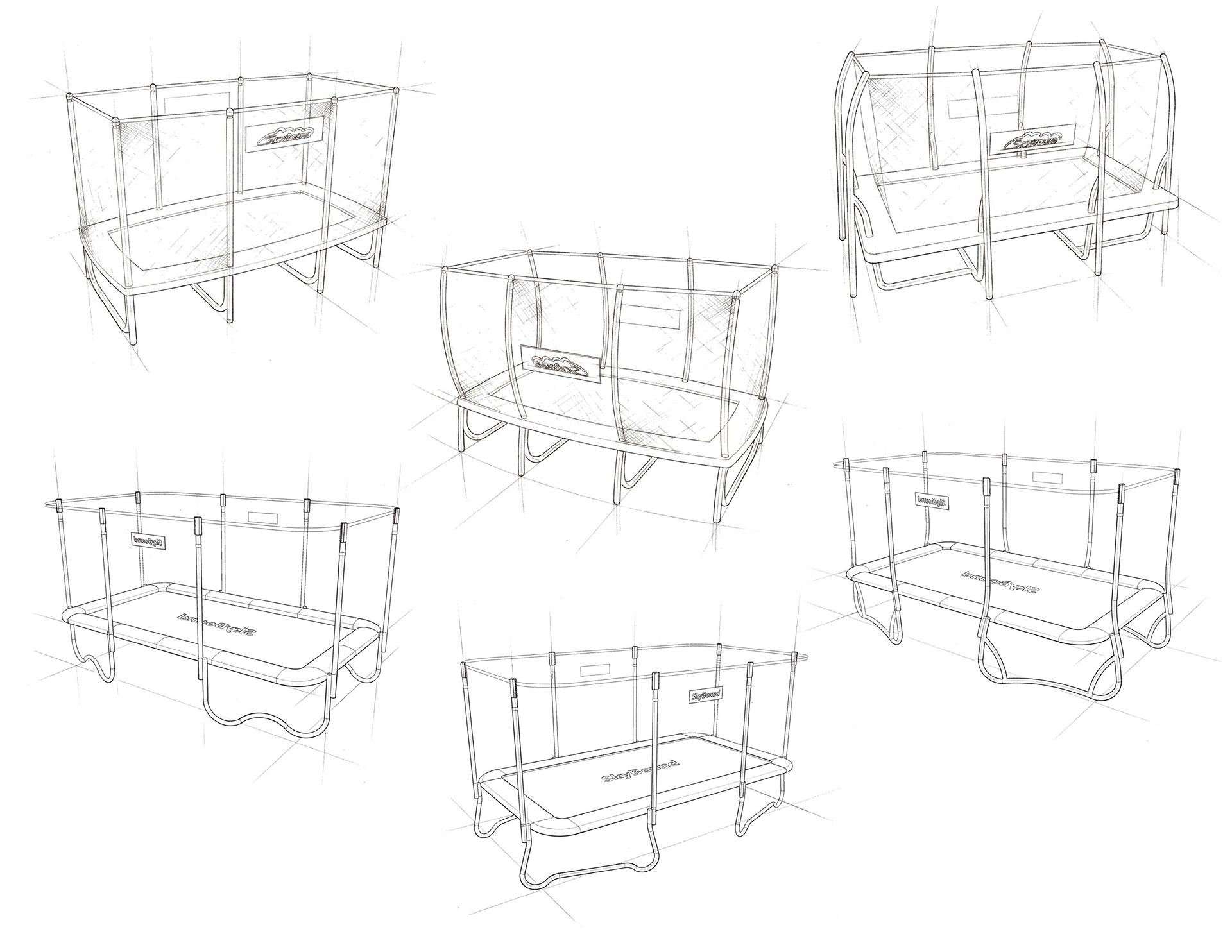

Preliminary sketch concepts

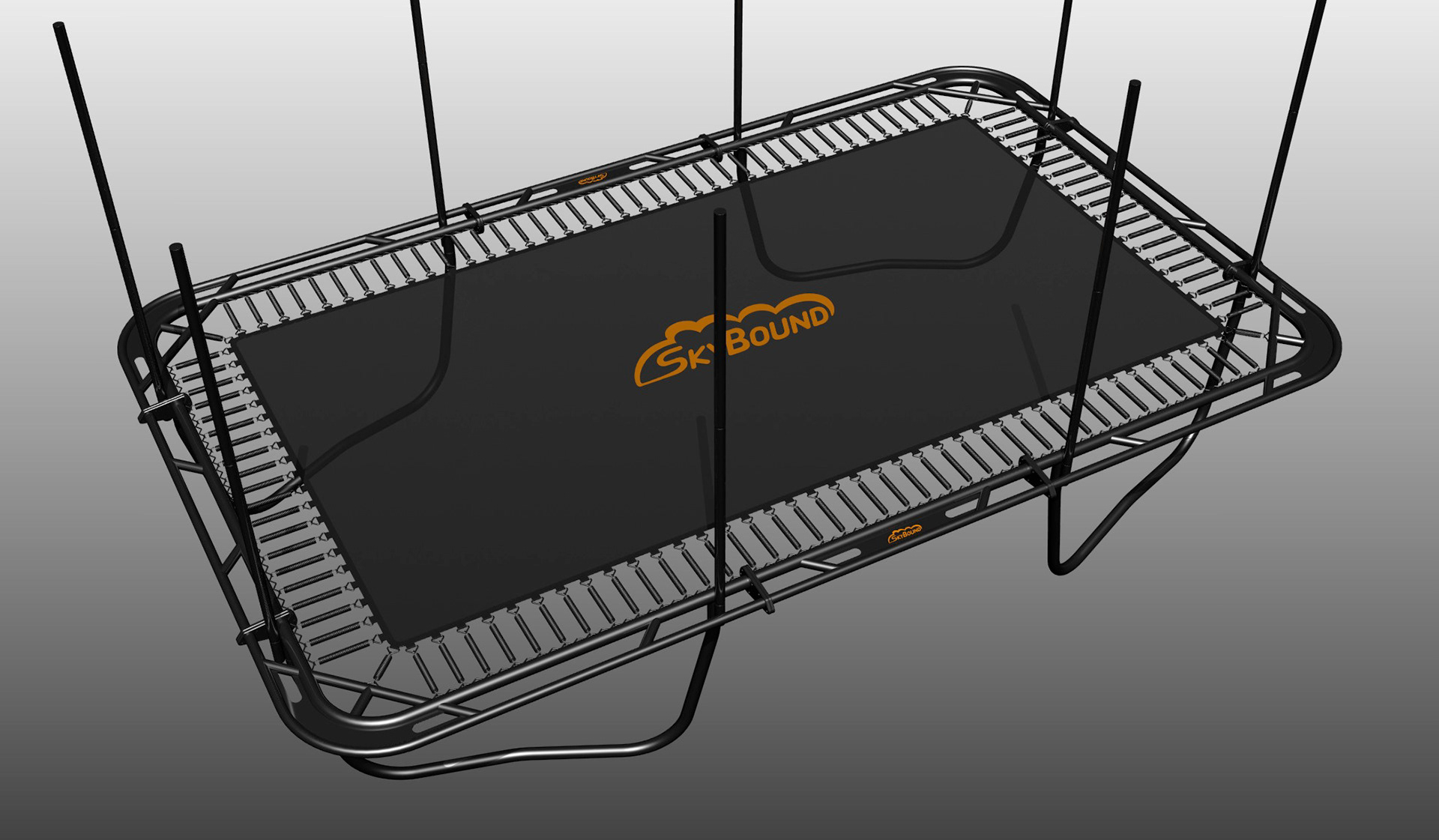

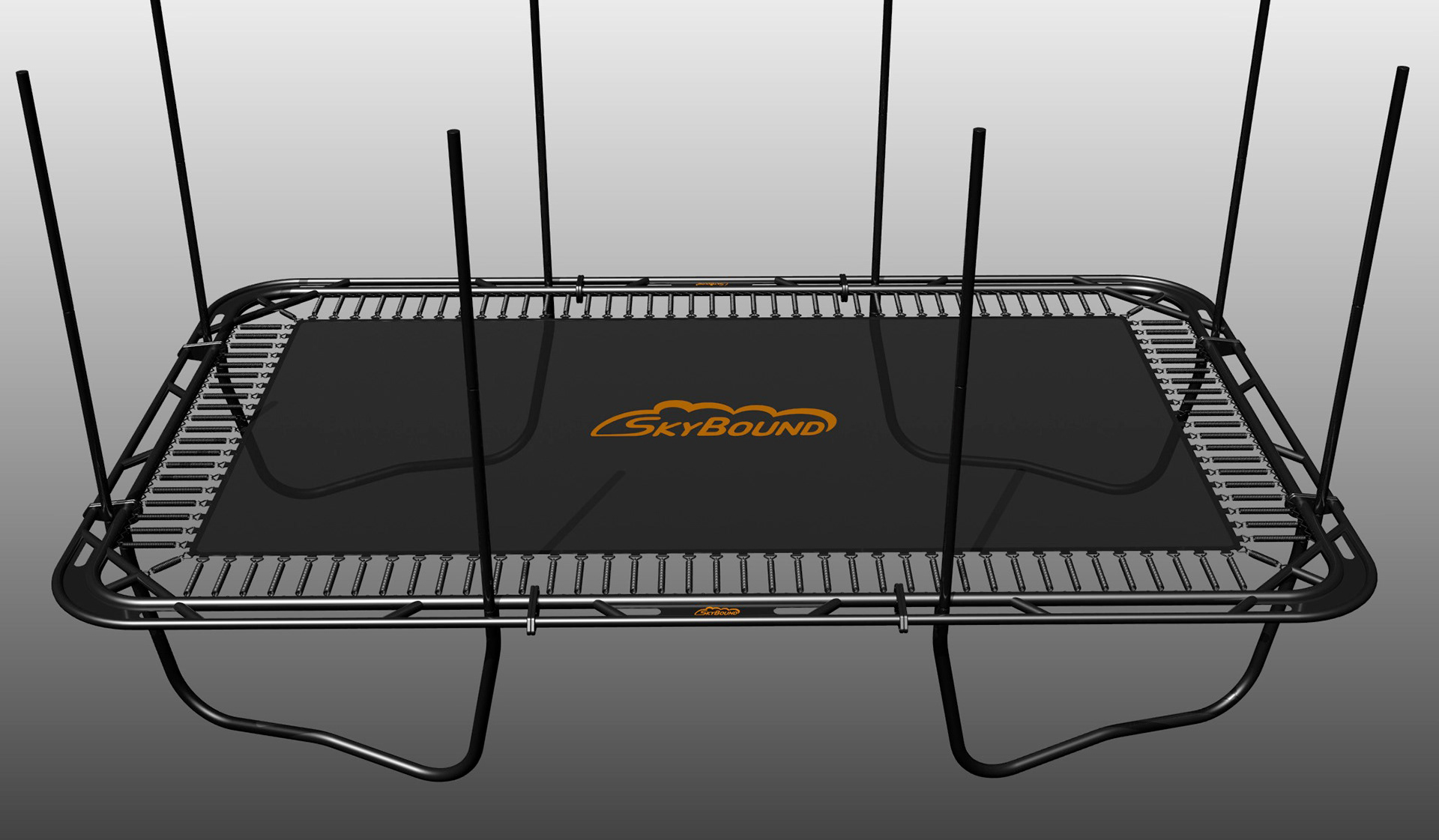

3D CAD model

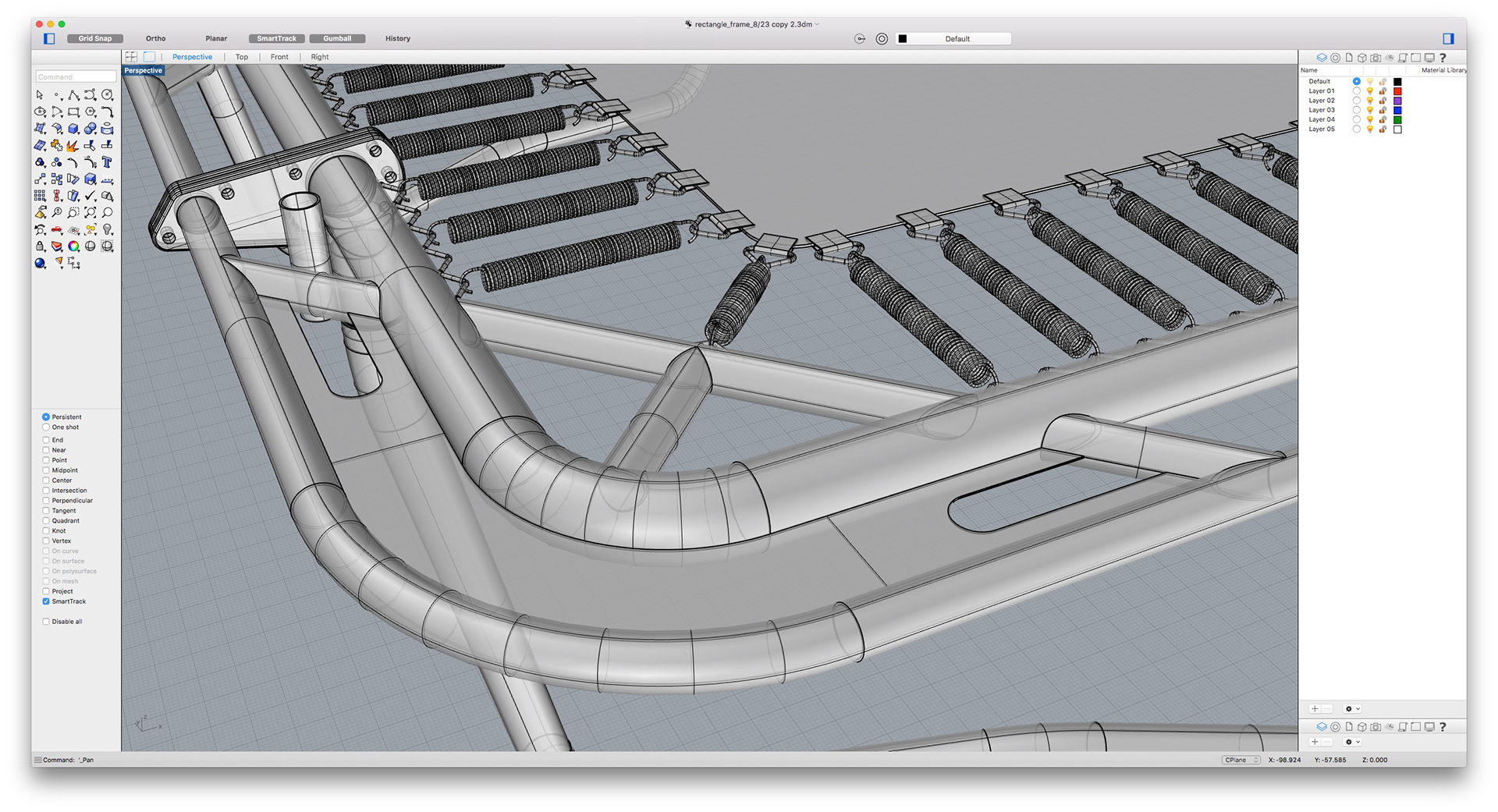

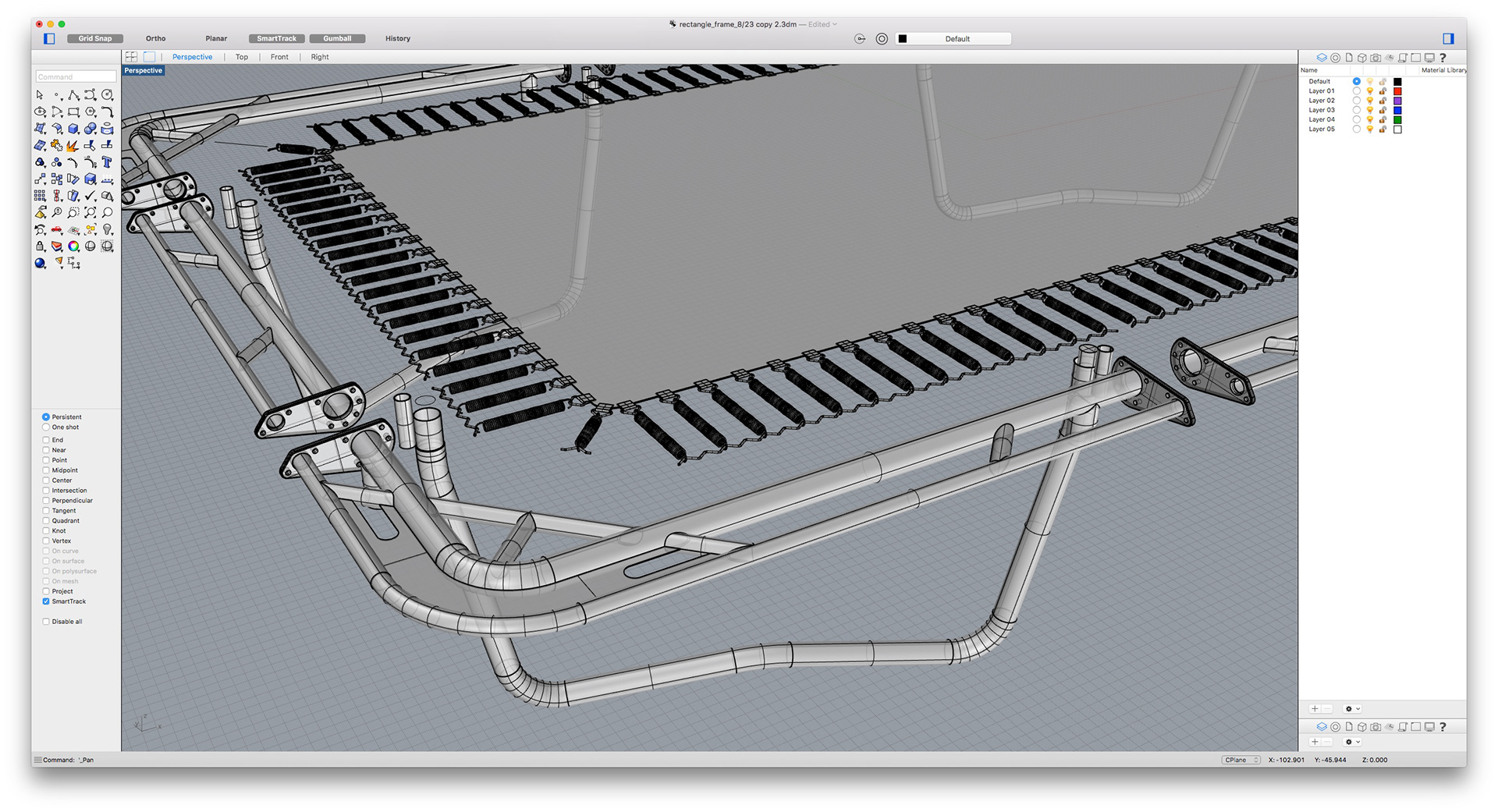

Engineering 3D CAD solid model. IGES files used for production
Engineering details

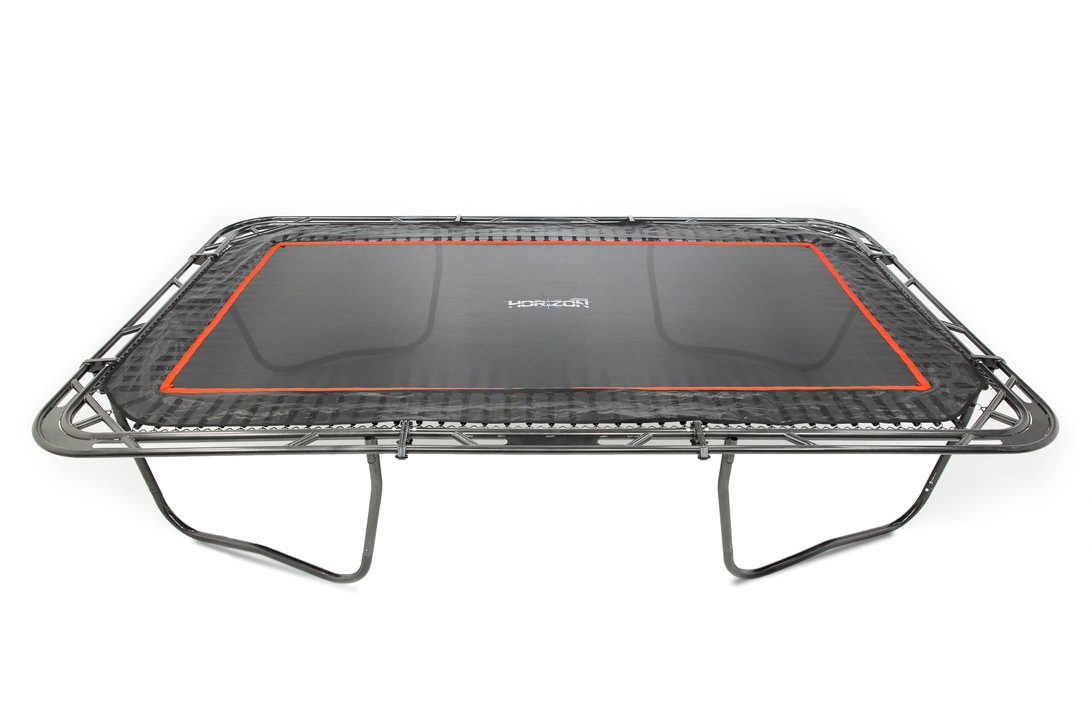

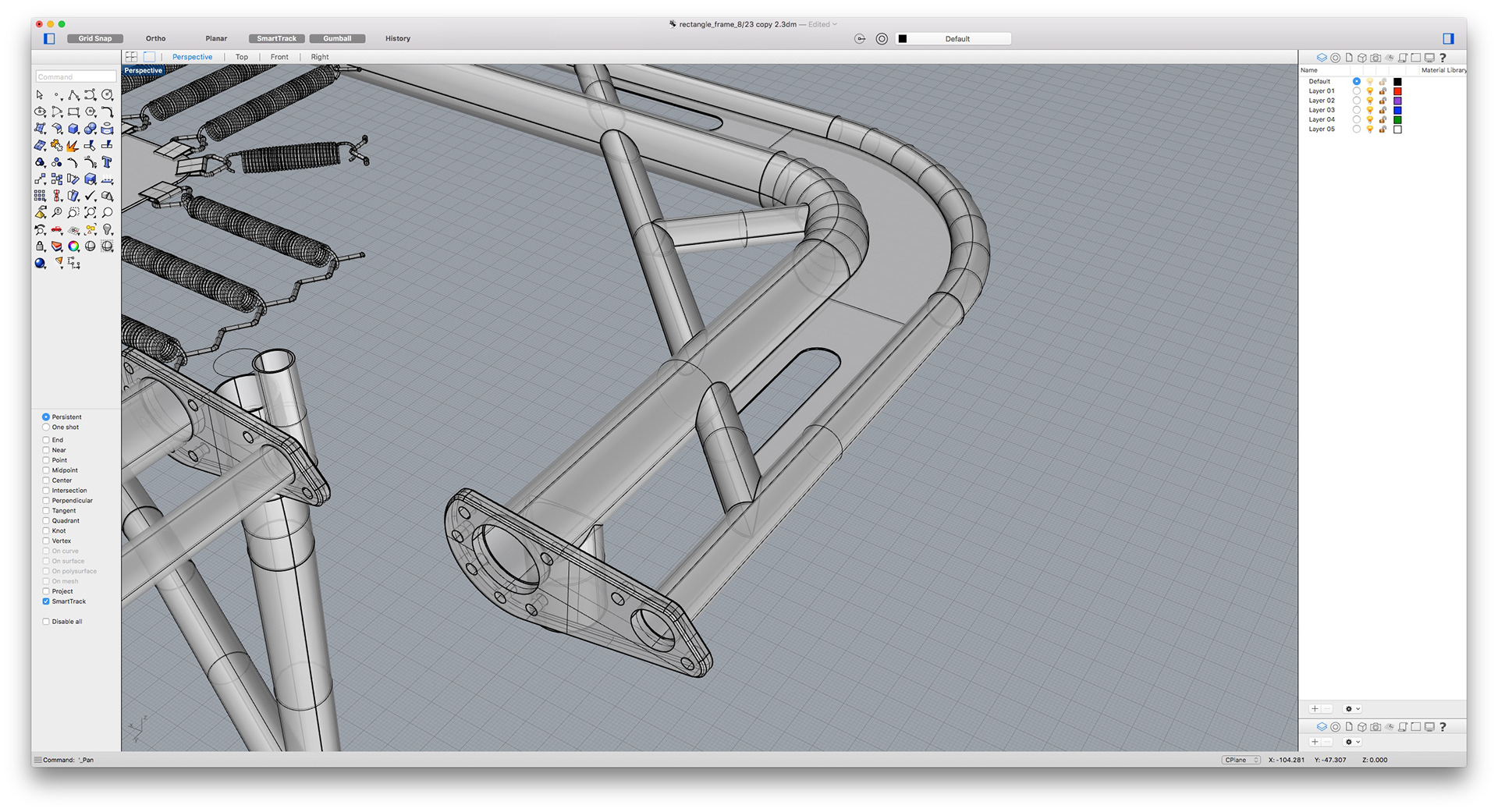

Dual frame construction with corner braces

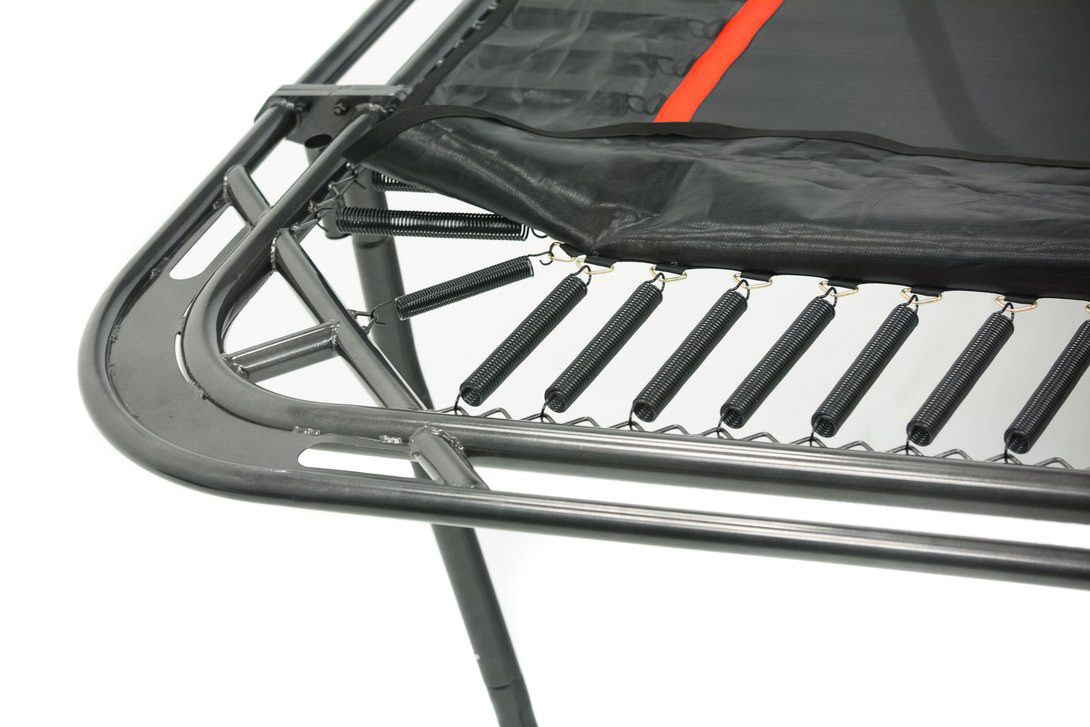

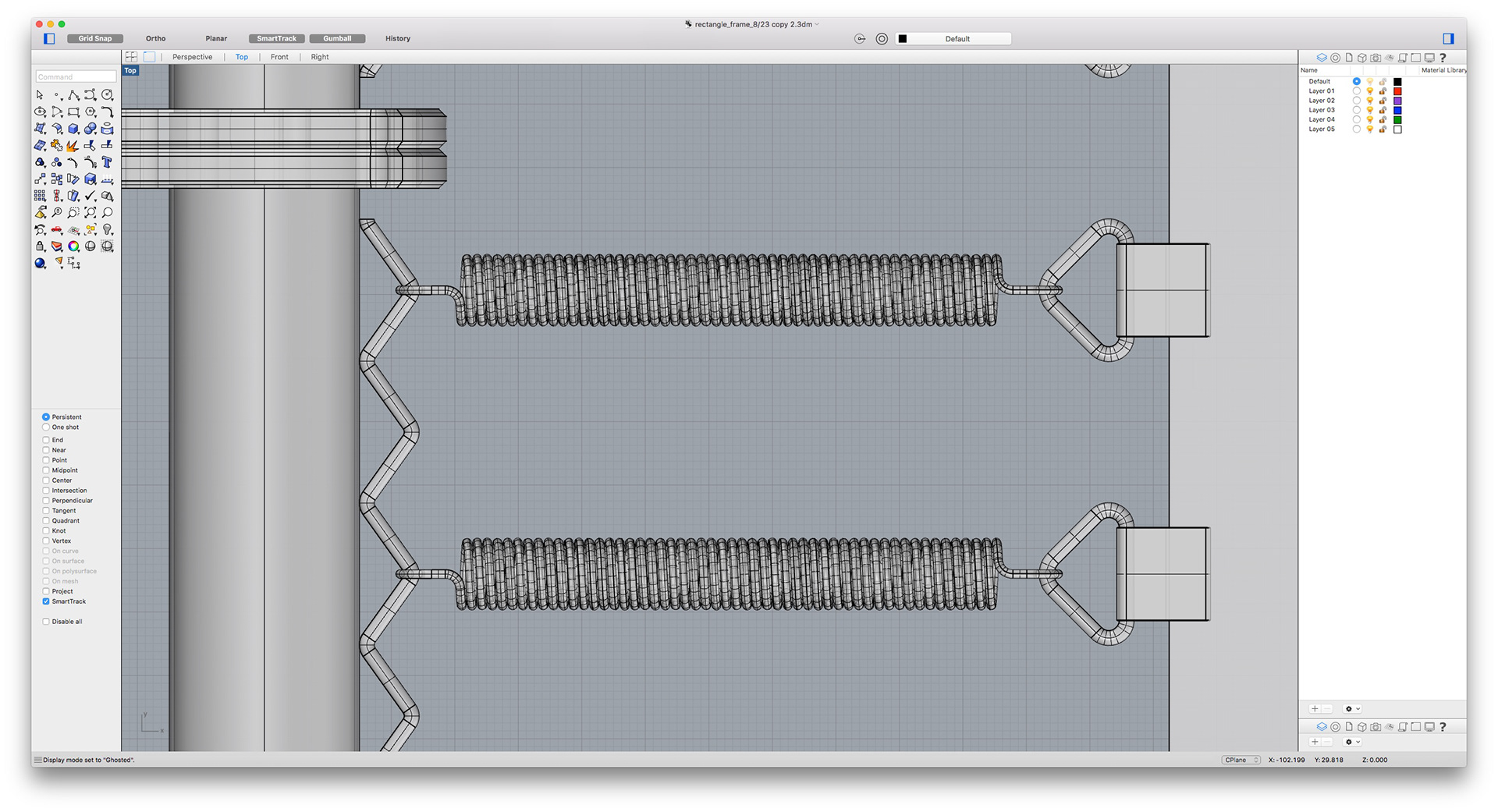

Spring connection - frame to mat
18 x 10 inch custom springs
Frame segments for shipping
Frame section assembly
3/8 inch flange connector plates
